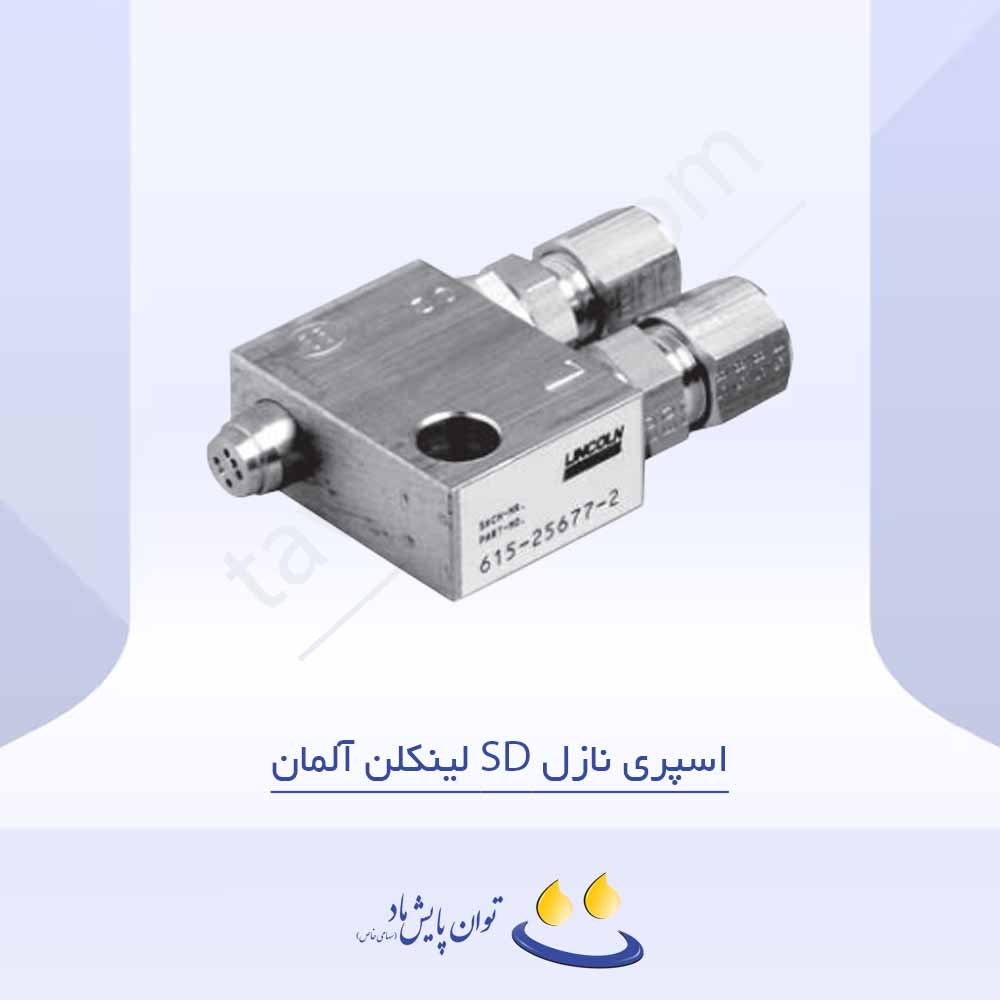

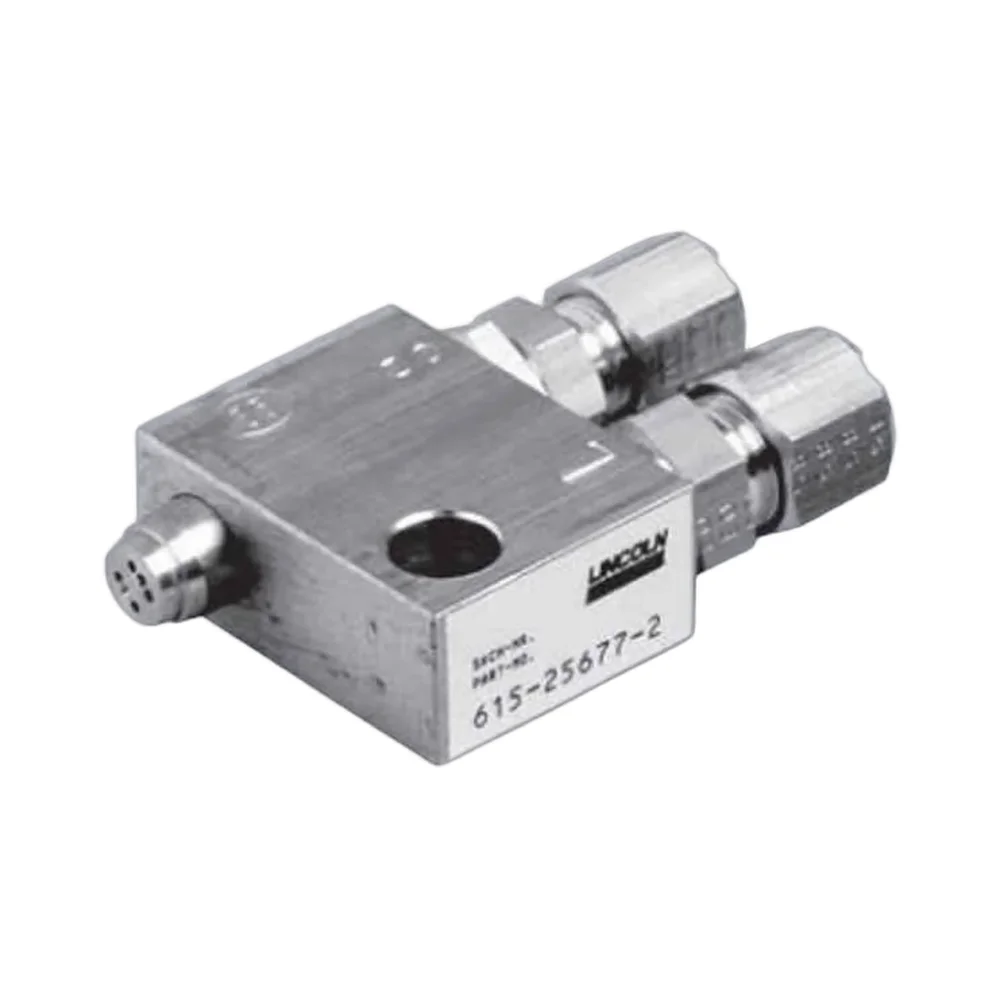

0.2 -20 cm³ (0.0122-1.22 in³) per minute
|
lubricant output
|
|
approx. 150 mm (6.0 in) wide and 80 mm (3.3 in) high
|
spray surface coverage
|
|
150-200mm(6-8in) from nozzle to application point
|
mounting distance
|
|
uncontrolled nozzle: 3 bar (43 psi), controlled nozzle:6 bar (87 psi)
|
air pressure
|
|
approx. 200 Nl/min (free air) for uncontrolled nozzle
max. 40 Nl/min (free air) for controlled nozzle
|
air requirement
|
|
max. 200 bar (2900 psi) for uncontrolled nozzle
max. 120 bar (1740 psi) for controlled nozzle
|
operating pressure
|
|
air: G 1/4 female (BSPP)
ubricant: G 1/4 female (BSPP)
fastening: M 12
|
connections
HSA-TD25, 26, 27
|
|
air: 8mm tubing or hose stud
lubricant: 6 mm tubing or hose stud
Fastening: 8.5 mm dia.
|
connections
HAS-TD2, 28, 29, 30
|
